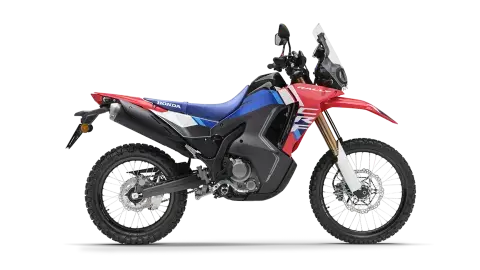

CRF300 Rally

CRF300 Rally New

From Honda

North West Honda Super Centre Icon

Overview


Now 286cc, the CRF300L’s new engine produces 10% more peak power of 20.1kW @ 8,500rpm, and 18% more peak torque at 26.6Nm @ 6,500rpm. Inlet cam timing has been revised, alongside both air intake and exhaust system for much stronger mid-range torque and power. Gear ratios 1-5 are shorter, for improved response, while 6th is taller for more relaxed high-speed cruising. An assist/slipper clutch now manages the rear wheel under hard down changes and offers 20% less load at the lever.

A redesigned steel frame, aluminium swingarm and bottom yoke are major contributors to a 4kg overall weight loss and feature revised rigidity balance for feedback and feel. Steering geometry has been adjusted in detail to match, and the forks have an extra 10mm travel.

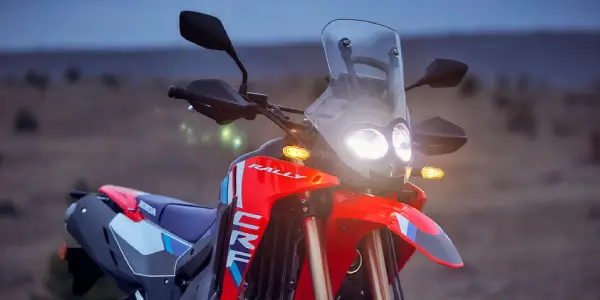

Sharp-edged bodywork features a larger, 12.8L capacity fuel tank and comfortable, broad seat, distinctive asymmetric dual LED headlight and new, positive LCD instrument display. The riding position, too, has been altered to encourage the light steering manoeuvrability needed off-road and, just as usefully, around town.

An extra 14% cubic capacity for the single-cylinder, liquid-cooled DOHC engine – from 250cc to 286cc – is acquired by a 63mm stroke, as opposed to 55mm. Bore remains unchanged at 76mm, as does compression ratio of 10.7:1. Peak power of 20.1kW arrives @ 8,500rpm, peak torque of 26.6Nm @ 6,500rpm (up from 18.2kW @ 8.500rpm/22.6Nm @ 6,750rpm). The full dyno graph curves tells the full story beyond the peak power and torque uplift: the new engine is considerably stronger, everywhere, from 2,000rpm up.

To match the engine’s heavier punch and again, to smarten pick-up and acceleration, gear ratios 1-5 are shorter while 6th gear is taller, for more relaxed highway cruising. Addition of an assist/slipper clutch reduces lever load by 20% and manages rear wheel ‘hop’ on rapid downshifts – great for control, on or off-road. On the highway, top speed goes from 129km/h to 135km/h.

Revised timing of the intake cam specifically boosts low- to mid-range response – the rpm range most used around town or off-road – and works with a redesigned air filter, exhaust downpipe, muffler and ignition timing. An iridium spark plug, along with precise metering of fuel from the PGM-FI injection system, further enhances combustion efficiency and improves environmental credentials.

The engine uses an offset cylinder, reducing internal frictional losses, while the piston itself incorporates a special surface material, plus molybdenum coating. The oil pump features an internal relief structure that prevents aeration of relieved oil. The crank journal employs a half-split, press-fit metal bearing while the crank bearing uses a cast-iron bush. A primary balance shaft further reduces vibration.

The cooling system uses a 12.7kW heat-release radiator, sited on the left of the bike, protected with a polypropylene grill baffled to improve airflow. A thin guide-ring cooling fan is used to maintain even temperatures at low speeds, either in congested traffic or tricky off-road situations.

The CRF300 RALLY’s engine is fully EURO5 compliant.

A total of 4kg has been saved overall from the CRF300 RALLY’s chassis, with wet weight now of 153kg. The steel semi-double cradle frame is completely new and contributes 2.15kg to the weight loss. Just as importantly, to promote handling feel and connection to front/rear traction, its flexibility balance has been tuned with 25% less lateral rigidity.

This has been achieved with decreased width (-30mm) for the main down tube and smaller, 25.4mm diameter lower down tubes (from 28.6mm) plus a 20mm decrease in width across the central bracing tube.

To match, the one-piece cast aluminium swingarm is not only 550g lighter, it features a 23% reduction in lateral rigidity. It’s also 15mm narrower just behind the pivot point and smooth, cross-sectional shaping is used to create uniform deflection. Extruded aluminium is used for the chain adjustment collar. The steel bottom yoke of the previous design has been changed for aluminium; this shaves 730g from an area high relative to the centre of gravity for faster steering response.

The 43mm Showa inverted fork gains 10mm of stroke to 260mm, with spring weight and damping settings revised for precise control over a wide range of terrain and speeds. Pro-Link rear suspension features a 260mm axle stroke; the Showa shock absorber is a single tube design.

Ground clearance has been increased, from 270mm to 275mm, thanks to revisions to the lower frame, engine crankcases and oil drain plug. Rake and trail are now set at 27.5°/109mm (from 27.6°/113mm) with 10mm longer wheelbase of 1455mm.

The front brake uses a single 296mm disc gripped by a two-piston caliper, the rear a 220mm disc and single-piston caliper; in common with the CRF competition machines the rear master cylinder is now a lightweight, integrated design. The discs feature a wave design – also taken directly from the CRF250R/CRF450R – with exceptional self-cleaning abilities in adverse conditions. 2-channel ABS is standard.

Lightweight aluminium rims further reduce unsprung mass; for 2021 the Alumite surface has been polished to a gloss finish. Block pattern enduro-style tyres (front, 80/100-21 51P and rear 120/80-18 62P) provide traction in a wide range of riding situations.

The 21-inch front wheel and 18-inch rear increase stability on rough terrain and allow the fitment of more off-road specific tyres if required. Application of a machined rear sprocket and M8 bolts (instead of M10) plus hollow rear axle saves 240g and 160g respectively.



Specifications

Battery Capacity (VAh)12V-7AH
Caster Angle27.5°
Dimensions (L×W×H) (mm)2230 x 920 x 1415mm
Frame typeSteel Semi-Double Cradle
Fuel Tank Capacity (Litres)12.8 L
Fuel Consumption32.3 km/L
Ground Clearance (mm)275mm
Kerb Weight (kg)153kg
Seat Height (mm)885mm
Trail (mm)109mm
Wheelbase (mm)1455mm
Turning Radius2.3m
Bore × Stroke (mm)76mm x 63mm
CarburationPGM-FI electronic fuel injection
Compression Ratio10.7:1
Engine Displacement (cc)286cc
Engine TypeLiquid-cooled, Single, DOHC
Max. Power Output20.1kW/8500rpm
Max. Torque26.6Nm/6500rpm
StarterElectric
C02 Emissions (g/km)73 g/km
Oil Capacity (Litres)1.8 L
HeadlightsLED
InstrumentsLCD
Tail LightBulb
ClutchWet multiplate, Assist Sliper Clutch
Final DriveChain
Transmission Type6-speed
Brakes Front296 mm x 3.5mm disc with two piston caliper
Brakes Rear220 mm x 4.5mm disc with single piston caliper
Suspension Front43mm Telescopic Upsidedown
Suspension RearProlink
Tyre Size Front80/100-21M/C 51P
Tyre Size Rear120/80-18M/C 62P
Wheels FrontAluminium spoke
Wheels RearAluminium spoke
