The CBR650R replaces the CBR650F on Honda’s line-up, with new, aggressive styling and a racier riding position to offer more highly-tuned sports performance for the street. Taking styling cues directly from the 2018 CBR1000RR Fireblade, but with an attitude all of its own, ‘F’ becomes ‘R’ - indicating a potent shot of sporty ability that’s designed to be explored, used and enjoyed on the street.
In the process of its transformation the CBR650R has become, deliberately, a rare breed: a sports bike that provides similar pleasure, enjoyment and adrenaline to an RR machine, yet with enough practicality – and sensible running costs – to make it a viable option as day-to-day transport in addition to weekend fun.
Honda’s development engineers wanted to create the purest, most enjoyable mid-sized four-cylinder performance possible for the CBR650R rider. So the 649cc, DOHC 16-valve engine has been tuned to eliminate a slight torque dip at 5,500rpm, and deliver 5% more power above 10,000rpm with a redline raised 1,000rpm. Peak power of 70kW arrives at 12,000rpm with peak torque of 64Nm delivered at 8,500.
The net result out on the road is a motor that spins harder, and for much longer, at high rpm, with a smooth, linear torque delivery that builds strongly as revs rise, and sounds great in the process. An easy 35kW conversion is available for A2 licence holders.
Direct cam actuation makes for a compact cylinder head; bore and stroke is set at 67mm x 46mm with compression ratio raised to 11.6:1 (from 11.4:1) and combustion chamber shape optimised by use of a revised piston design. The valve train has been reinforced and valve timing revised; iridium spark plugs are also now employed.
Asymmetric piston skirts minimise bore contact and reduce friction. Ferrous spines on the outer surface of the cylinder sleeves reduce oil consumption (and friction) with improved heat transfer, and a silent SV cam chain reduces frictional losses by using a Vanadium coating on its pins. Internal water channelling from cylinder head to cylinders does away with most of the exterior hoses.

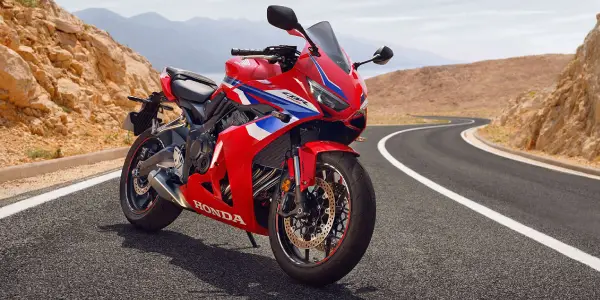

New twin ram air ducts feed the airbox from either side of the fairing with a larger volume of air, as opposed to the single, central duct of the CBR650F. They also produce a throaty intake roar. The exhaust now features a larger bore tail pipe – from 35 to 38.1mm – inside the muffler to flow more gas and, with its exit pipe angled upwards, to transmit the evocative howl more directly to the rider.
The engine uses a compact internal architecture, stacked six-speed gearbox and starter layout with the cylinders canted forward 30°. An assist/slipper clutch is a new addition and eases upshifts (with 12% less lever load) while managing rear-wheel lock up under rapid downshifts. Also, for 2019 Honda Selectable Torque Control (HSTC) is fitted to manage rear wheel traction; it can be turned off should the rider choose.
Fuel consumption of 20.4km/l (WMTC mode) gives a range of over 300km from the 15.4L fuel tank.
While its four-cylinder power unit is still firmly on display, the CBR650R’s new wrapping ramps up the pure sporting appeal; dual LED headlights emit a penetrating, uncompromising stare, and the upper and (extended) lower fairings blend muscularity with sharp, slim lines and angles.
The seat unit, too is more compact and truncates the rear of the machine, adding to the harder-edged sense of purpose. The aggressive riding position starts with clip-on handlebars that now mount beneath the top yoke; they’re 30mm forward and lower than the CBR650F, and footpegs are 3mm further back and 6mm higher. Seat height remains 810mm.
The steel diamond frame has been updated for 2019 with pressed (rather than forged) swingarm pivot plates; it’s 1.9kg lighter than the previous design and uses twin elliptical spars with a rigidity balance specifically tuned (stiffer around the headstock and more ‘flexible’ in the spar sections) to deliver balanced handling characteristics with high levels of rider feedback.
Kerb weight is reduced at 207kg thanks not only to the lighter frame, but also savings to both fuel tank and new super sport-style footpegs.
Also new is the 41mm Showa Separate Function front Fork (SFF) USD fork adjustable for spring preload and rebound damping. Adjustable for 7-stage spring preload the single-tube monoshock operates directly on the curvaceous gravity die-cast aluminium swingarm. Rake is set at 25.5° with trail of 101mm and wheelbase of 1,450mm.
Four-piston radial-mount front brake calipers work on 310mm wave-pattern floating discs, matched to a single-piston rear caliper and 240mm disc. Two channel ABS is fitted as standard. The cast aluminium wheels are a brand-new design and mount 120/70-ZR17 and 180/55-ZR17 front and rear tyres.

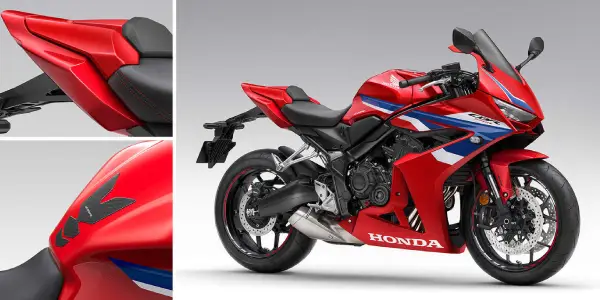

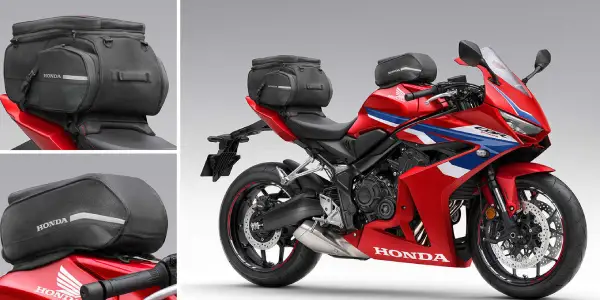

A range of Genuine Honda Accessories is available for the CB650R:
Matt Gunpowder Black Metallic
Grand Prix Red
To ride the CBR650R, you will need an A2 licence as the minimum. If you have an A2 licence, the bike will have to be restricted.
The minimum age to hold an A2 licence is 19. With an A2 licence you can ride a standard motorcycle up to 35 kW (and a power-to-weight ratio not more than 0.2 kW per kg), the bike must not be derived from vehicle more than twice its power.
To acquire an A2 licence you can take the direct access route where you take a theory and practical test. The other option is to take the progressive route. If you decide to take the progressive route, you must have 2 years experience on an A1 motorbike and take a further practical test.
All information on the licence required to ride the bikes are correct at time of publication but may be subject to change. We endeavour to maintain accurate information, however cannot guarantee the details to be accurate all the time due to legislation changes. Cox Motor Group and North West Honda accepts no liability for any misrepresentation and recommends that the individual dealer be contacted to confirm the licence required to ride the bike.
|Bore × Stroke (mm)||67mm x 46mm|
|Carburation||PGM-FI electronic fuel injection|
|C02 Emissions||112 g/km|
|Engine Displacement (cc)||649cc|
|Engine Type (cm³)||Liquid-cooled 4-stroke 16-valve DOHC inline-4 cylinder|
|Max. Power Output||70kW/12,000rpm|
|Clutch||Wet multiplate, A.S.clutch|
|Battery Capacity (VAh)||YTZ10/FTZ10S 8.6Ah MF|
|Dimensions (L×W×H) (mm)||2,130mm X 750mm X 1,150mm|
|Frame type||Steel diamond|
|Fuel Tank Capacity (Litres)||15.4L|
|Ground Clearance (mm)||130mm|
|Kerb Weight (kg)||207kg|
|Seat Height (mm)||810mm|
|ABS System||2 channel|
|Brakes Front||310 mm x 4.5 mm disc with four piston caliper|
|Brakes Rear||240 mm x 5 mm disc with single piston caliper|
|Suspension Front||Showa separate function fork (SFF) USD|
|Suspension Rear||Mono with 10 stage pre-load adjuster, Aluminium Cast swingarm|
|Tyre Size Front||120/70ZR17M/C|
|Tyre Size Rear||180/55ZR17M/C|
|Wheels Front||Hollow-section 6-spoke cast aluminium 17M/C x MT3.5|
|Wheels Rear||Hollow-section 6-spoke cast aluminium 17M/C x MT5.5|
|Ignition System||Full transisterized|
|Instruments||Digital Speedometer, Digital Bar Graph Tachometer, Dual Trip Meters, Digital Fuel Level Gauge & Fuel Consumption Gauge, Digital Clock, Water Temp, Gear position, Shift UP Indicator|
