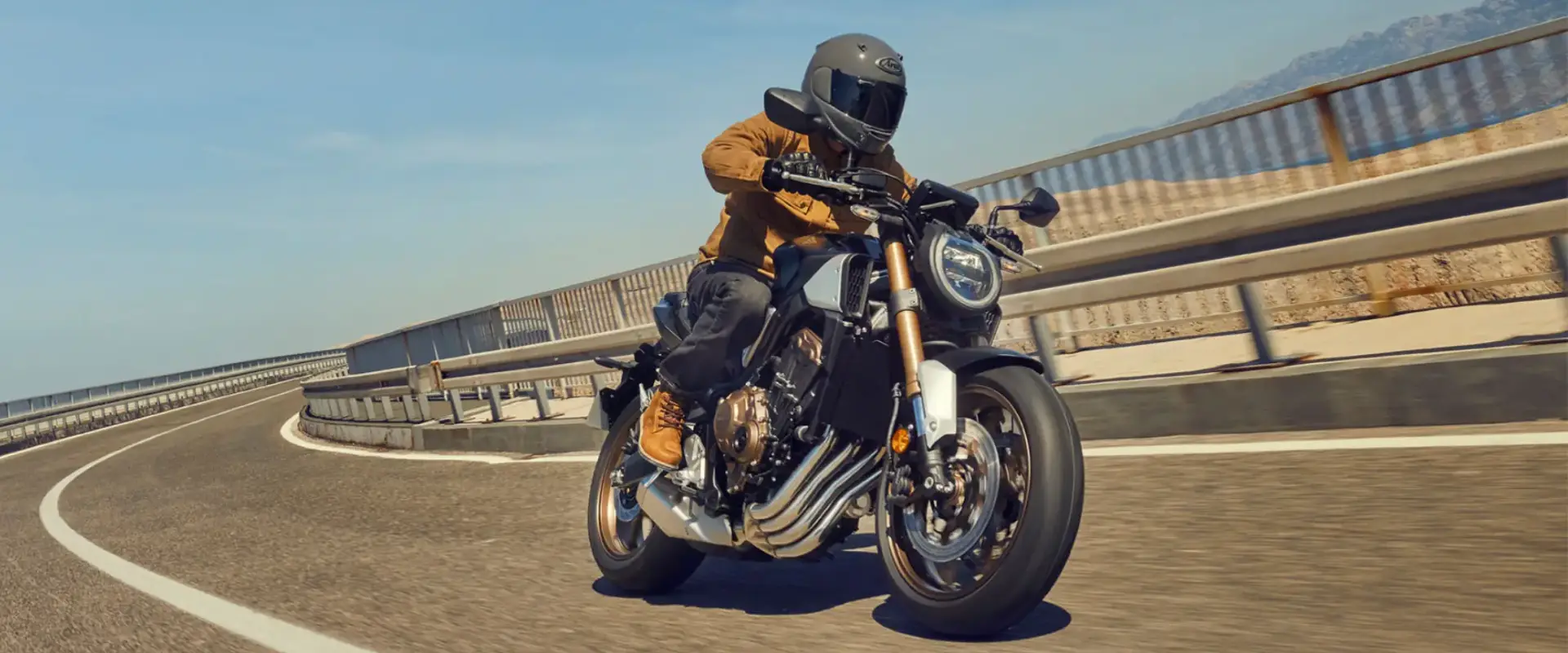

New Honda CB650R

Honda’s development engineers wanted to create the purest, most enjoyable mid-sized four-cylinder performance possible for the CB650R rider. So the 649cc, DOHC 16-valve engine has been tuned to eliminate a slight torque dip at 5,500rpm, and deliver 5% more power above 10,000rpm with a redline raised 1,000rpm. Peak power of 70kW arrives at 12,000rpm with peak torque of 64Nm delivered at 8,500.

The net result out on the road is a motor that spins harder, and for much longer, at high rpm, with a smooth, linear torque delivery that builds strongly as revs rise, and sounds great in the process. An easy 35kW conversion is available for A2 licence holders.

Direct cam actuation makes for a compact cylinder head; bore and stroke is set at 67mm x 46mm with compression ratio raised to 11.6:1 (from 11.4:1) and combustion chamber shape optimised by use of a revised piston design. The valve train has been reinforced and valve timing revised; Iridium spark plugs are also now employed.

Asymmetric piston skirts minimise bore contact and reduce friction. Ferrous spines on the outer surface of the cylinder sleeves reduce oil consumption (and friction) with improved heat transfer and a silent SV cam chain reduces frictional losses by using a Vanadium coating on its pins. Internal water channelling from cylinder head to cylinders does away with most of the exterior hoses.

New twin air ducts either side of the fuel tank feed the airbox with a larger volume of air, as opposed to the single, central duct of the old model. They also produce a throaty intake roar. The exhaust now features a larger bore tail pipe – from 35 to 38.1mm – inside the muffler to flow more gas and, with its exit pipe angled upwards, to also howl emotively purely for the rider’s benefit.

The engine uses a compact internal architecture, stacked six-speed gearbox and starter layout with the cylinders canted forward 30°. An assist/slipper clutch is a new addition and eases upshifts while managing rear-wheel lock up under hard braking and rapid downshifts. Honda Selectable Torque Control (HSTC) is fitted to manage rear wheel traction; it can be turned off should the rider choose.

Fuel consumption of 20.4km/l (WMTC mode) gives a range of over 300km from the 15.4L fuel tank.

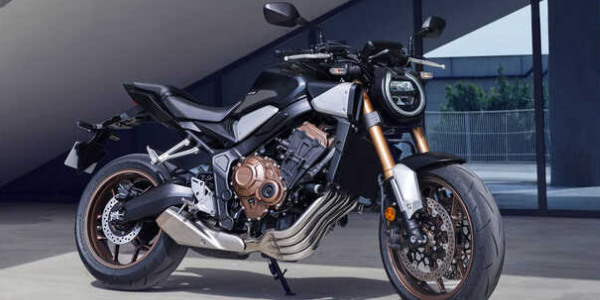

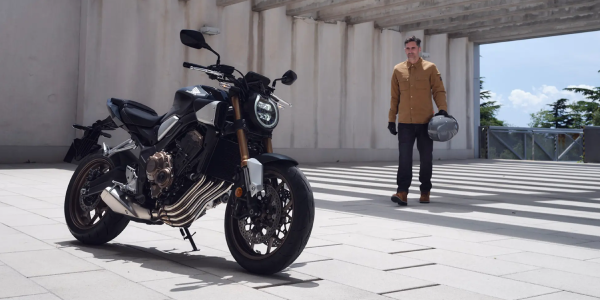

Tightly wrapped and aggressive, the CB650R’s Neo Sports Café style features the signature compact ‘Trapezoid’ proportion of short, stubby tail and short overhang headlight. The long fuel tank is a key motif of the family design; its smooth lines accentuate the solidity of real metal surfaces and crown the engineering of the four-cylinder powerplant. It also houses the ignition.

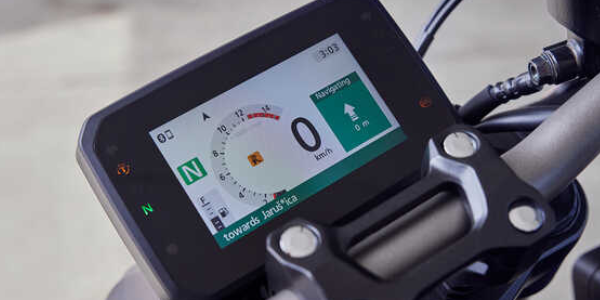

The round headlight is based on that of the CB1000R. It’s LED, as is the rest of the lighting. Sharp new LCD instruments also use the CB1000R as a baseline and include a Shift Up, Gear Position and Peak Hold indicator.

A more aggressive riding position than the CB650F moves the 557mm tapered handlebars 13mm forward and 8mm down, with footpeg position more rear set - 3mm back and 6mm higher. Seat height is 810mm.

The CB650R’s steel diamond frame is updated for 2019 with pressed (rather than forged) swingarm pivot plates; it’s 1.9kg lighter than the previous design and uses twin elliptical spars with a rigidity balance specifically tuned (stiffer around the headstock and more flexible in the spar sections) to deliver balanced handling characteristics with high levels of rider feedback.

Rake is set at 25.5° with trail of 101mm and wheelbase of 1,450mm. Kerb weight is 202kg (the CB650F weighed 208kg) thanks to weight saving in the frame, but also in the fuel tank and new super sport-style footpegs.

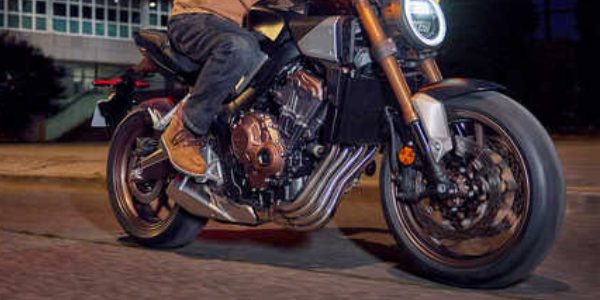

The 41mm Showa Separate Function Fork (SFF) USD front suspension, adjustable for spring preload and rebound damping; it’s clamped by a revised, forged aluminium bottom yoke. Adjustable for 7-stage spring preload the single-tube monoshock operates directly on the curvaceous gravity die-cast aluminium swingarm.

Four-piston radial-mount front brake calipers work on 310mm wave-pattern floating discs, and are paired with a single-piston rear caliper and 240mm disc. Two-channel ABS is fitted as standard. The cast aluminium wheels are a brand-new design and mount 120/70-ZR17 and 180/55-ZR17 front and rear tyres.

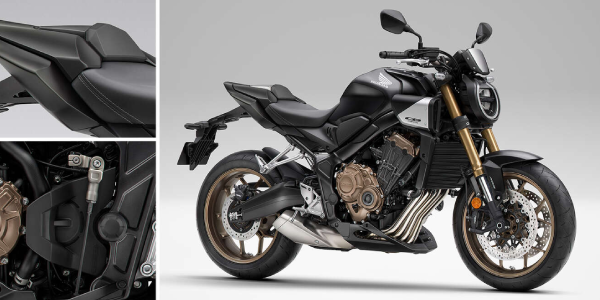

A range of Genuine Honda Accessories is available for the CB650:

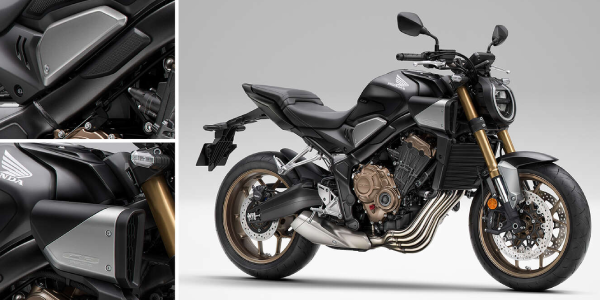

• Several Aluminium parts and Aluminium inserts to maximise the Neo Sport Café design that CB650R and CB1000R have in common (Meter Visor, Front Fender Panels, Shroud Covers, Side covers, Seat cowl).
• Under Cowl
• Wheel Stripes

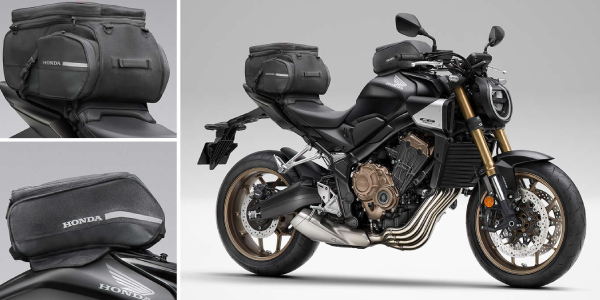

• Tank bag and seat bag inherited from the CB1000R.
• Quick shifter.
• Front Visor
• 12V socket
• Heated grips
• Tank pad
